Earlier connected genomic evidence and Bayesian parameter learning

This records the earlier connected genomic simulation and separate Bayesian parameter-learning qualifications. The shared genomic simulation has a newer fixed set of ten draws and separate pages for each library. Results from these runs are not pooled with the newer set. Development history, failed runs and exploratory diagnostics are deliberately excluded.

Scope

The workflow connects glma, gcorr, gbayes, gscore, gmap and gsea through the gsuite R interfaces. One detailed dataset provides figures and worked results. Ten independently simulated datasets repeat the same fixed design for a small descriptive qualification.

The qualification asks whether the modules can share prepared genomic data, summary statistics and LD resources; whether requested analyses complete; and whether their outputs behave sensibly relative to known simulation truth. A separate five-repetition design qualifies the supported BayesC and BayesR reference-LD recipe. The results are descriptive checks rather than a ranking of competing methods.

Simulation design

  • 10,000 unrelated simulated individuals and 50,000 biallelic markers.
  • 500 independent 100-marker regions with within-region correlation ranging from 0.2 to 0.8.
  • Three continuous traits with target heritabilities 0.30, 0.40 and 0.35.
  • Effects enriched in the first 80 regions.
  • Region 1 contains a shared causal variant for two traits; region 2 contains distinct causal variants.
  • Three disjoint GWAS samples of 3,000 individuals and 1,000 held-out individuals for prediction.
  • A pooled LD reference constructed from the 9,000 GWAS individuals. It retains every pair within each simulated region with \(r^2=0\) and no cross-region LD.

Population truth is calculated from the simulated effects and the known population LD, rather than from the observed reference matrix.

Qualification outcome

Component Exercised capability Outcome
glma Three 50,000-marker linear GWAS scans All marker fits completed; 150 selected marker/trait comparisons across the ten repetitions agreed with R OLS within \(10^{-9}\)
gcorr LDSC, GNOVA, SumHer, annotation-aware LDSC, HESS, SUPERGNOVA and LAVA Point estimates completed; truth comparisons, unavailable uncertainty and out-of-range correlations remain visible
gbayes BayesC and BayesR using sparse reference LD The supported parameter-learning recipe passed all heritability, effect-recovery, prediction and chain-diagnostic criteria across five simulations
gscore Ridge, BayesC and BayesR scoring Held-out scoring completed; truth-effect scoring agreed with simulated genetic values within numerical tolerance
gmap Regional multi-effect mapping and ABF colocalisation The deliberately simple shared and distinct causal signals were recovered in all repetitions
gstat and gsea Gene statistics, ORA, preranked GSEA, competitive regression, bounded MAGMA and Bayesian pathway analysis All requested gene and pathway statistics completed through the documented saddlepoint gene-tail route

All ten planned repetitions completed. Seeds were fixed in advance and no failed simulation was replaced. Native operation-local thread counts were one.

Bayesian linear-regression qualification

Supported reference-LD recipe

Use the scalar BayesC and BayesR reference-LD workflow as follows:

  1. Standardize the continuous phenotype and dosage scale, align summary statistics to the LD reference, and retain the allele labels.
  2. Use a matched reference population. The qualification uses 3,000 GWAS individuals and an independent reference of 9,000 individuals.
  3. Construct sparse LD with a 1,000-marker window and \(r^2=0.001\).
  4. Use residual_policy = "reference_ld" and residual_adjustment = 0.9.
  5. Set priors to the intended architecture. Here the expected nonzero proportion is 0.02. BayesR uses variance multipliers \((0,0.01,0.1,1)\) and active-component proportions \((0.012,0.006,0.002)\). Mixture weights use an explicit Dirichlet strength of 5,000.
  6. Run four chains. Use 500 burn-in sweeps, followed by 700 retained sweeps for BayesC or 5,000 for BayesR. Require maximum R-hat at most 1.05 and minimum bulk ESS at least 100 for the reported scalar parameters.

The sampler learns residual variance, marker-effect variance and mixture probabilities. It returns posterior marker effects, PIPs, parameter traces and joint-draw reference heritability. Posterior-mean effects can be passed to gscore() without changing marker order or allele orientation.

Qualification design and outcome

Five fixed simulations use 3,000 study individuals, 2,000 markers, 40 causal markers and target heritability 0.30. BayesC is evaluated under a homogeneous normal-effect architecture. BayesR is evaluated under its matching three-component variance mixture. Each simulation receives a separately generated reference panel from the same genotype population. No failed draw was replaced.

Result across five simulations BayesC BayesR
Mean reference truth 0.294 0.312
Mean posterior heritability 0.305 0.297
Heritability bias +0.011 -0.015
Heritability RMSE 0.023 0.021
Conditional intervals containing truth 5/5 5/5
Mean marker-effect correlation with truth 0.927 0.943
Mean genetic-score correlation with truth 0.941 0.951
Mean prediction calibration slope 0.950 0.992
Maximum R-hat 1.004 1.005
Minimum bulk ESS 1,240 1,182

The predeclared criteria required absolute heritability bias at most 0.05, RMSE at most 0.075, at least four of five intervals containing truth, mean effect correlation at least 0.80, mean score correlation at least 0.90, maximum R-hat at most 1.05 and minimum bulk ESS at least 100. Both methods passed every criterion.

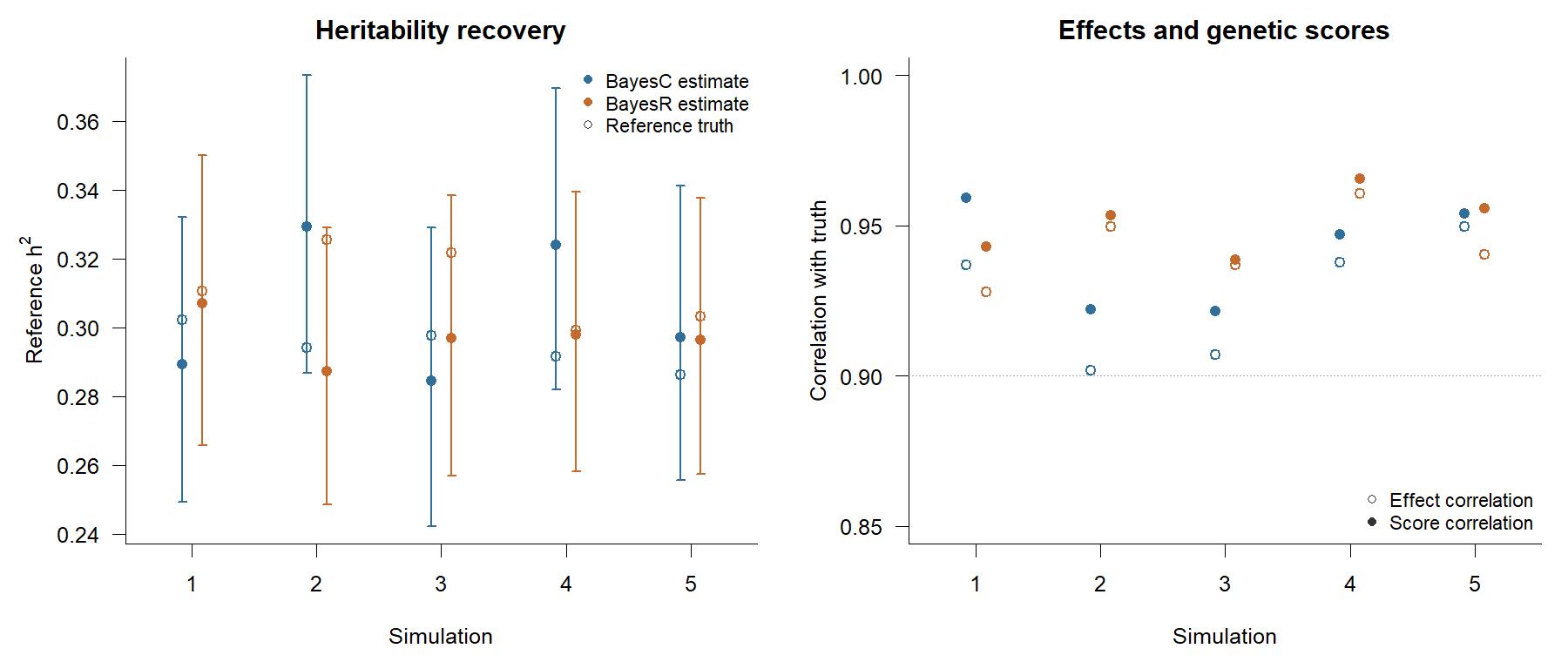

BayesC and BayesR reference-heritability recovery, marker-effect recovery and genetic-score recovery across five simulations. Open circles in the left panel are the reference truth for each simulation.

Download the method summary or the five-repetition results.

Small fixed-seed native checks also show that the BayesC and BayesR transitions agree with the corresponding installed sblr calculations to numerical precision. With complete same-sample LD, posterior mean effects correlate 0.9975 for BayesC and 0.9994 for BayesR with individual-level sblr effects. These checks connect the supported R workflow to its native implementation.

Advanced Bayesian transitions

A second fixed five-repetition qualification covers four advanced transitions under their intended data contracts. Block residual learning uses two disjoint summary-likelihood blocks with separate response normalizations. BayesS uses 600 markers, 300 nonzero effects and a known MAF exponent. The multivariate design uses three continuous traits measured on the same 1,800 individuals, complete shared LD, and the observed response cross-product required to learn sampling covariance. The relocation design uses 20 strongly correlated marker pairs.

Result across five simulations Truth or comparator Posterior result Mean absolute error
Block residual variance 0.683 0.681 0.0023
BayesS MAF exponent -0.500 -0.395 0.2182
Latent effect-covariance entries 0.00192 0.00202 0.00023
Sampling-covariance entries 0.440 0.439 0.0159
Genetic-score correlation with and without LD relocation 0.98417 0.98406 0.00012

All predeclared criteria passed. Accepted LD relocation fractions ranged from 0.321 to 0.538, while genetic-score correlation remained stable. This supports using the move to traverse equivalent strong-LD representations; it does not claim that the data can distinguish causal markers from nearly identical proxies. The BayesS result supports learning a broad MAF–variance trend in this informative design, not precise estimation of small MAF effects in every dataset.

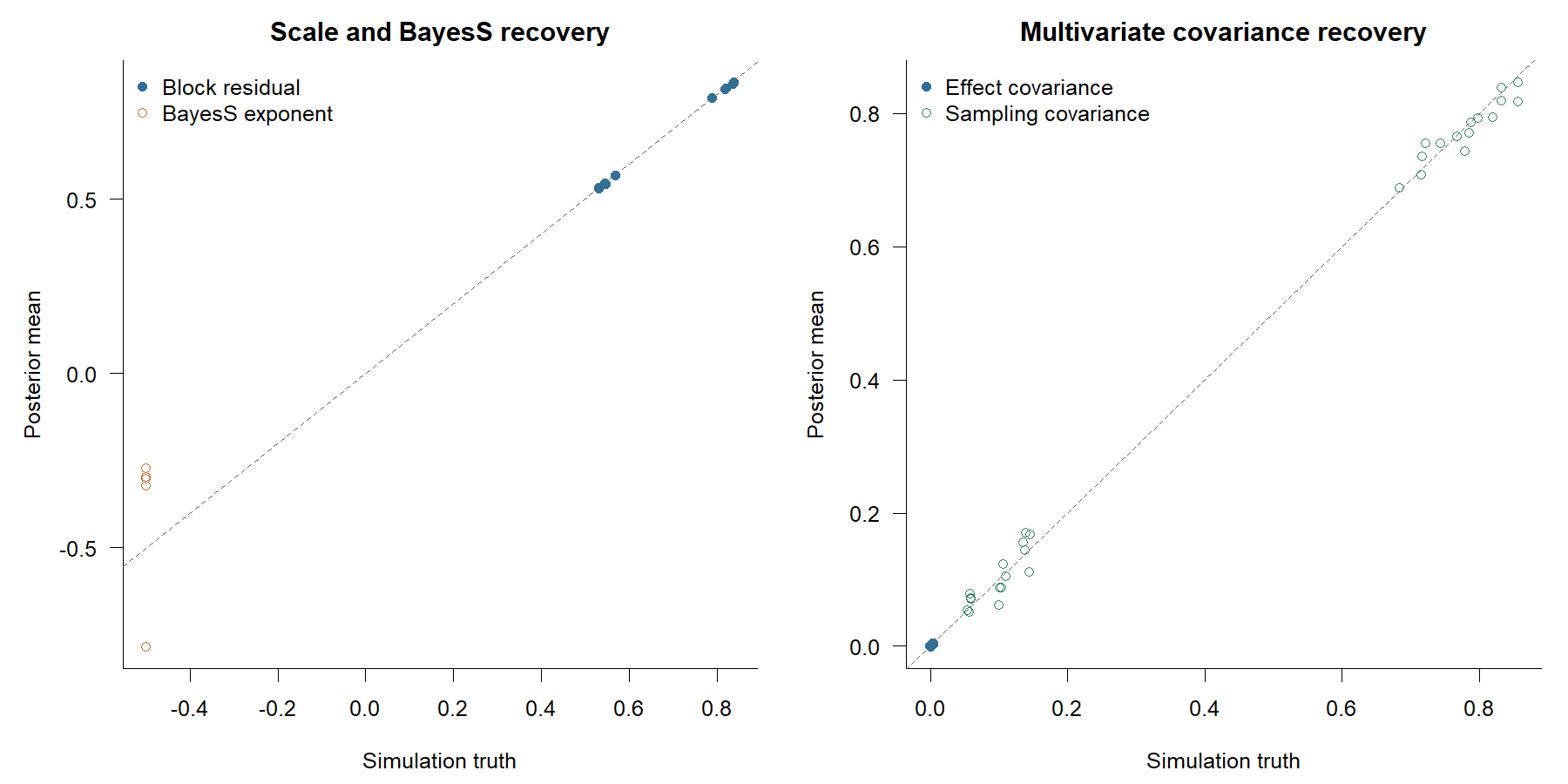

Recovery of block residual scales, the BayesS exponent, latent effect covariance and sampling covariance across five simulations.

Download the method summary or the five-repetition results.

Exact continuation is checked separately because it is a computational identity, not a simulation-performance question. Saving after one segment and restoring the native state reproduces the final state, random-number generator and trace tail of an uninterrupted scalar or multivariate chain.

Other numerical findings

Across the ten repetitions:

  • Mean trait heritabilities were 0.300, 0.398 and 0.349.
  • Annotation-aware LDSC means were 0.310, 0.439 and 0.394. Baseline LDSC, GNOVA and SumHer generally underestimated heritability in this deliberately nonuniform architecture.
  • All 40 component credible sets contained the simulated causal marker in the two simple mapping regions.
  • HESS supplied standard errors for 189 of 600 regional covariance estimates; SUPERGNOVA supplied 600 of 600; the exercised LAVA route supplies none.
  • Six annotation-category genetic correlations were undefined because an estimated component heritability was nonpositive.
  • The documented saddlepoint gene-tail route returned all 30,000 requested p-values; 11 calculations used the recorded moment-matching fallback.

Unavailable values and out-of-range genetic correlations are retained in the public tables. They are not clipped, silently replaced or removed.

Qualification limits

This evidence covers one continuous-trait simulation design with a predefined LD structure, architecture and sample split. Ten repetitions provide a useful descriptive check, but not precise power, false-positive, coverage or method ranking statements.

The connected qualification does not cover binary traits, population structure, multi-ancestry analysis, realistic LD-reference mismatch, alternative LD windows or \(r^2\) thresholds, MR/SEM/GGM, Bayesian annotation learning beyond the BayesS specialization, arbitrary sampling overlap, LOCO association, every interface option, or complete package/platform qualification. Literature attribution and pedigree/greml/gsolve qualification are maintained separately.

Recorded results

The public workflow presents the retained figures and principal results without executing analyses during website rendering. The published compact tables preserve the aggregate truth comparisons, availability summaries, BayesC/BayesR reference-LD results and extension checks. Current supported calls are documented by the package guides and their focused deterministic tests.

The complete package check was not part of this workflow qualification.
